Marine Power & Transmission Solutions.
Marine equipment and power transmission solutions designed to support reliable, efficient and dependable vessel operations.
Marine Equipment Built for Real Operations.
YOUIL provides marine equipment and technical solutions for vessel propulsion, transmission and supporting marine applications.
Through a range of specialized products, YOUIL solutions can support different vessel requirements and operational environments.
Solutions for marine applications.
Multiple equipment solutions.
Application-focused solutions.
Supported by PT JNK MATGIM.
Explore YOUIL Solutions.
Browse the available product categories and find the solution that matches your vessel requirements.
YOUIL Marine Product Range.
Explore YOUIL marine equipment by product category. Select a category to view available products and technical specifications.
Select a Product Category
Select a category above to explore available YOUIL products and technical specifications.
Marine Gearbox
Marine transmission equipment for vessel propulsion applications.
YOUIL Marine Engine
Engine solutions for different marine operational requirements.
YOUIL Marine Generator
Power generation solutions for marine applications.
YOUIL PTO
Power take-off solutions for marine equipment applications.
YOUIL Hydraulic Roller
Hydraulic Roller and supporting solutions for marine operations.
YOUIL Marine Winch
Marine winch solutions for vessel deck and operational applications.

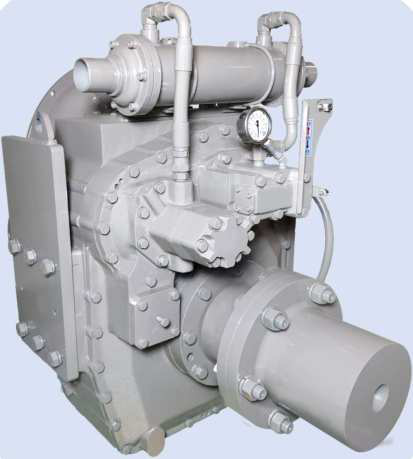

Marine Transmission Solutions.
YOUIL marine gearbox solutions are designed for vessel propulsion and marine transmission applications.
KMG 200 / KMG 300
Standard marine gearbox models for vessel propulsion applications.
KMG 400E / KMG 450 / KMG 490
Standard gearbox models for higher power marine applications.

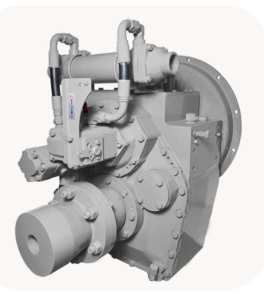

KMG 600 / KMG 700
High-capacity marine gearbox models for larger propulsion requirements.
KMG 800 / KMG 900
High-capacity gearbox models for demanding marine propulsion systems.

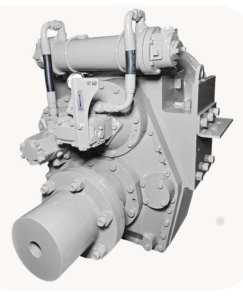

KMG 1000 / KMG 1100
High-power marine gearbox models designed for larger vessel propulsion systems.
KMG 1200
The KMG 1200 is the largest standard gearbox model presented in the catalog.

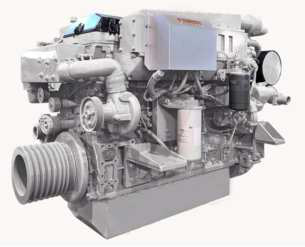

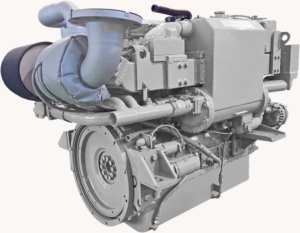

KME Marine Engine Series.
YOUIL KME marine engines are water-cooled diesel engines designed for marine propulsion applications, available in multiple power configurations.
KME Model Range
| Specification | KME75 | KME95 | KME125 | KME335 T1 | KME500 | KME560 T2 |
|---|---|---|---|---|---|---|
| Engine Type | 4 Cycle, Upright Type Water Cooled Diesel Engine | |||||
| Rated P (PS/RPM) | 75 / 2700 | 95 / 2700 | 125 / 2400 | 335 / 2150 | 500 / 2000 | 560 / 2100 |
| Max P (PS/RPM) | - | - | - | 360 / 2200 | 560 / 2000 | 650 / 2150 |
| No. of Cylinders | 4 in line | 6 in line | ||||
| Bore | 104 | 100 | 104 | 130 | 130 | 130 |
| Stroke | 105 | 105 | 115 | 140 | 155 | 160 |
| Displacement | 3.6 | 3.3 | 3.9 | 11.2 | 12.34 | 12.74 |
| Starting Method | Electric Motor (DC24V) | |||||
| Intake Type | NA | TC | Turbocharger with Intercooler | |||
| Compression Ratio | 17.5 : 1 | 16.0 : 1 | 16.5 : 1 | 16.5 : 1 | 17.2 : 1 | 17.2 : 1 |
| Fuel | Diesel Oil | |||||
| Fuel Consumption (g/ps.h) | 170 | 165 | 145 | 156 | 152 | 159 |
| Fuel Injection Type | Direct Injection | |||||
| Fuel Injection Pump | Bosch Type Injection Pump | EUI | Bosch Type Injection Pump | Delphi Electronic Unit Injector (EUI) | ||
| Lubrication Oil | API 15W/40 CH-4 or More | |||||
| Lubricating Method | Forced Lubrication by Gear Pump | |||||
| Cooling Method | Indirect Sea Water Cooling by Centrifugal Pump | |||||
| Dry Weight (kg) | 440 | 450 | 450 | 1300 | 1610 | 1630 |
Engine Dimensions
| Dimension | KME75 | KME95 | KME120 | KME335 T1 | KME500 | KME560 T2 |
|---|---|---|---|---|---|---|
| L | 800 | 800 | 800 | 1240 | 1310 | 1310 |
| H | 265 | 265 | 265 | 370 | 350 | 350 |
| W1 | 250 | 250 | 250 | 350 | 300 | 300 |
| W2 | 250 | 250 | 250 | 350 | 300 | 300 |
| W3 | 500 | 500 | 500 | 700 | 640 | 640 |
| FH | 840 | 840 | 910 | 1205 | 1180 | 1180 |
| FW | 740 | 740 | 740 | 905 | 1090 | 1090 |
Hydraulic Power Take-Off Solutions.
YOUIL KMP Power Take-Off systems are designed to drive hydraulic pumps from marine engines for fishing, lifting and deck equipment.
KMP-S1
KMP-S1 is an independent drive PTO designed for hydraulic pump applications with compact installation and electronic valve operation.

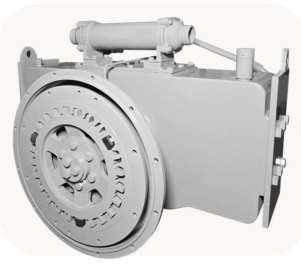

KMP1
KMP1 is a compact Power Take-Off configuration designed for hydraulic pump applications.
KMP2 Series
KMP2 Series provides multiple pump-port configurations for marine hydraulic applications.
KMP3 / KMP4
KMP3 and KMP4 provide higher-capacity hydraulic pump configurations for marine equipment applications.
Designed for Marine Applications.
Easy installation for marine hydraulic applications.
Supports different pump configurations depending on model.
Electronic valve operation is available for rapid response.
High durability and strength through special heat treatment.
Hydraulic Roller for Marine Operations.
YOUIL Hydraulic Roller solutions are designed for convenient net winding and anchor lifting applications in marine operations.
Strong and Practical Marine Roller.
Designed for easy and convenient operation when winding nets or lifting anchors. The roller is built to withstand external impacts during marine operations.
Built for Marine Handling.
Convenient operation for winding nets and lifting anchors.
Strong against external impacts during marine operation.
Custom production is available for various front and side roller specifications.

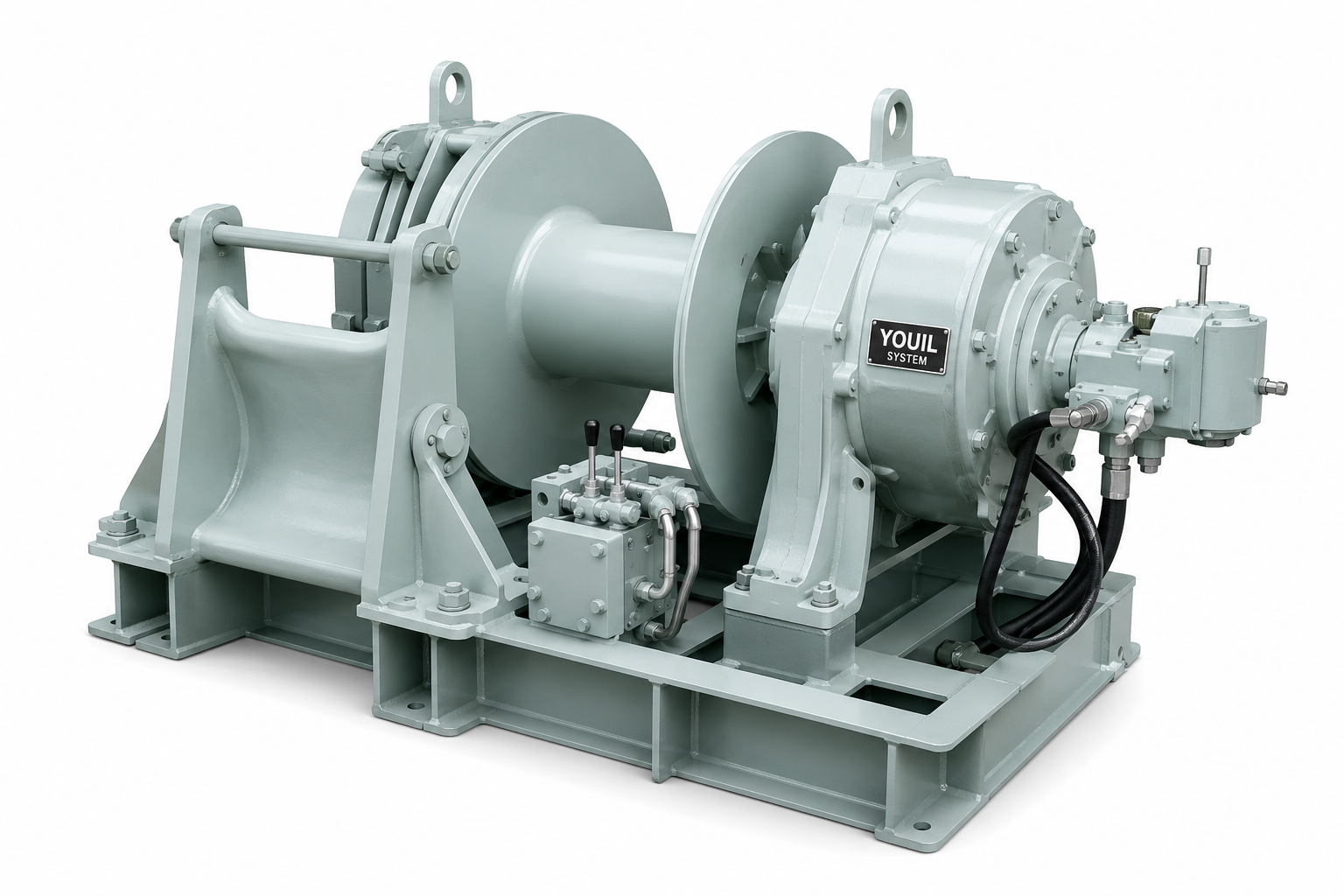

Marine Winch Solutions.
YOUIL develops marine winch solutions for vessel and deck applications, including customized equipment according to operational requirements.
Designed for Marine Applications.
YOUIL provides winch solutions as part of its marine equipment range, with customized configurations available for specific vessel requirements.
Marine Equipment Built Around Your Requirements.
Winch solutions can be developed according to specific operational requirements.
Designed as part of YOUIL's marine equipment solutions.
Technical configuration is determined based on the vessel and operational requirements.

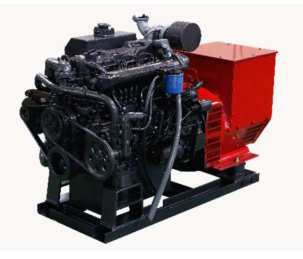

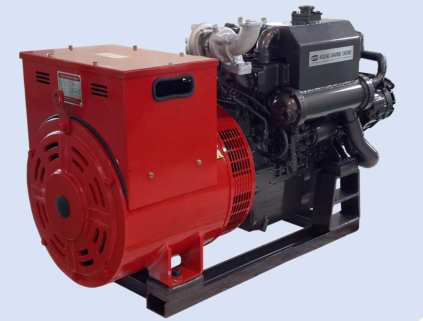

Marine Generator Set Solutions.
YOUIL KMPG Generator Sets combine water-cooled diesel engines with generator systems for reliable marine power generation.
KMPG Model Range
| Specification | KMPG55 | KMPG70 | KMPG95 |
|---|---|---|---|
| Engine Type | 4 Cycle, Upright Type Water Cooled Diesel Engine | ||
| kW / RPM — 50Hz | 17 / 1500 | 38 / 1500 | 57 / 1500 |
| kW / RPM — 60Hz | 27 / 1800 | 45 / 1800 | 64 / 1800 |
| No. of Cylinders | 4 in Line | ||
| Bore | 104 | 100 | 104 |
| Stroke | 105 | 105 | 115 |
| Displacement | 3.6 | 3.3 | 3.9 |
| Starting Method | Electric Motor (DC24V) | ||
| Intake Type | NA | TC | Turbocharger with Intercooler |
| Compression Ratio | 17.5 : 1 | 16.0 : 1 | 16.5 : 1 |
| Fuel | Diesel Oil | ||
| Fuel Consumption (g/ps.h) | 170 | 165 | 145 |
| Fuel Injection Type | Direct Injection | ||
| Fuel Injection Pump | Bosch Type Injection Pump | EUI | |
| Lubrication Oil | API 15W/40 CH-4 More | ||
| Lubricating Method | Forced Lubrication by Gear Pump | ||
| Cooling Method | Indirect Sea Water Cooling by Centrifugal Pump | ||
| Dry Weight (kg) | 660 | 730 | 730 |
Generator Dimensions
| Dimension | KMPG55 | KMPG70 | KMPG95 |
|---|---|---|---|
| L | 1390 | 1390 | 1430 |
| FH | 960 | 960 | 960 |
| FW | 740 | 740 | 740 |
KMPG Generator Set.
KMPG55, KMPG70 and KMPG95 configurations.
Available at 1500 RPM and 1800 RPM configurations.
Upright type water cooled diesel engine configuration.
Indirect sea water cooling by centrifugal pump.
Solutions for Different Vessel Requirements.
YOUIL products can be selected according to vessel type, propulsion system and operational needs.
Commercial Vessel
Equipment solutions for commercial marine operations.
Workboat
Solutions supporting demanding workboat operations.
Tug & Utility
Marine equipment for tug and utility vessel applications.
Special Application
Solutions selected according to specific vessel requirements.
Marine Solutions Focused on Reliability.
Selecting the right marine equipment requires understanding the vessel, application and operational environment.
Marine Application
Products focused on marine operational requirements.
Product Selection
Product selection can be matched to vessel requirements.
Technical Information
Technical specifications can be provided according to the selected model.
Local Support
PT JNK MATGIM supports customers in Indonesia.
Your Marine Equipment Partner in Indonesia.
PT JNK MATGIM supports customers in selecting suitable marine equipment based on vessel requirements, application and operational needs.
Supporting reliable marine equipment solutions for vessel operations.
Need the Complete YOUIL Product Catalog?
Contact our team to receive detailed product specifications, available models and technical information based on your requirements.
Looking for the Right Marine Equipment?
Tell us about your vessel and application. Our team can help identify the suitable YOUIL solution.
